Expanded PTFE is a sealing agent that is made of 100-percent pure PTFE. The expansion process produces a microporous fibrous structure which gives the product its unique mechanical properties. The material is specially targeted for sealing flange joints in pipelines and hydraulic and pneumatic systems. In addition, expanded PTFE is a perfect sealant for sealing glass and plastic flanges and pressure vessels.

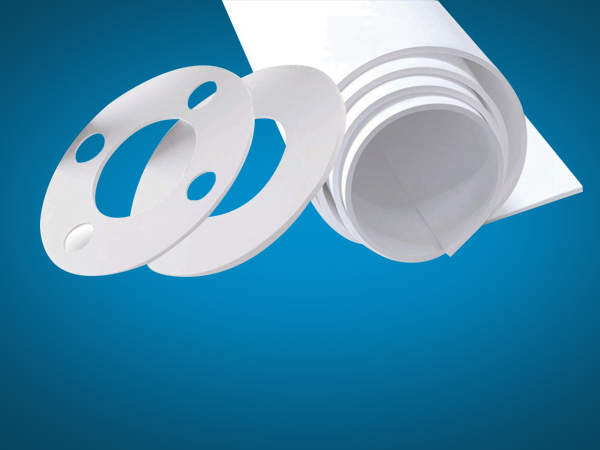

Expanded PTFE Gasket Sheet
Expanded PTFE Gasket Sheet is a form of PTFE which is expanded and stretched in many different directions during the manufacturing process. This ‘multi-directional’, higher strength material demonstrates a reduced tendency to creep under load at elevated temperatures when compared with other PTFE gasket materials.
- Technical Data - Service Capability
- Size : 0.5, 0.8, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 9.0 (mm)
- Temprature : Minimum : - 200 ºC , Maximum : + 260 ºC
- pH : 0 - 14
- Pressure resistance : vacuum up to 200 bar

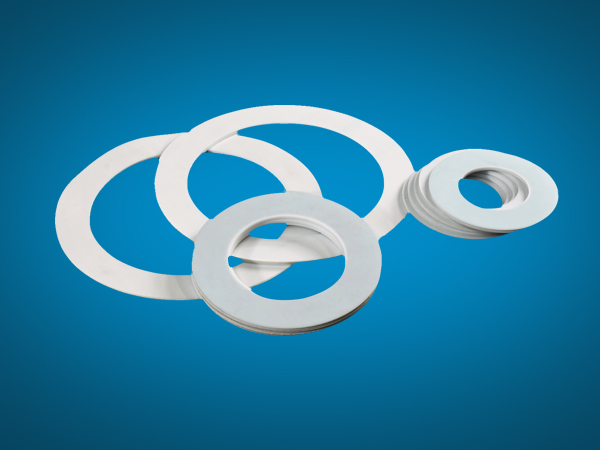

Expanded PTFE Gasket Ring
Expanded PTFE Gasket Ring have Excellent resistance as solid PTFE, it’s UV resistance, non aging and non toxic. it can work at temperature up to 260 ºC. ePTFE gaskets is soft flexible gasket and sealing material easily conforms to sealing surface imperfections with less torque than conventional materials. ePTFE resists cold flow and creep while offering the widest range of sealibility, chemical resistance, and temperature service of any material offered.
- Technical Data - Service Capability
- Size : 0.5, 0.8, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 9.0 (mm)
- Temprature : Minimum : - 200 ºC , Maximum : + 260 ºC
- pH : 0 - 14
- Pressure resistance : vacuum up to 200 bar

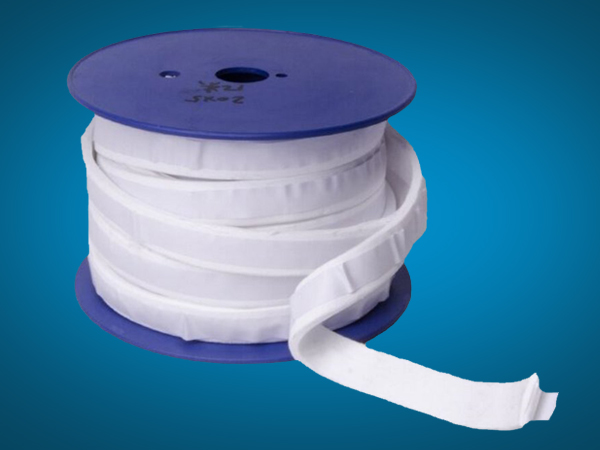

Expanded PTFE Sealing Tape
ePTFE Sealing Tape have Excellent resistance as solid PTFE, it’s UV resistance, non aging and non toxic. it can work at temperature up to 260ºC. ePTFE Sealing tape is idea sealing for pipe fitting and flanges. It comes with qn adhesive strip on back side.
- Technical Data - Service Capability
- Size : 1.5, 2.0, 3.0, 4.0 (mm)
- Temprature : Minimum : - 200 ºC , Maximum : + 260 ºC
- pH : 0 - 14
- Pressure resistance : vacuum up to 200 bar
PTFE Universal Rope
PTFE Universal Rope a specially formulated sealing material that withstands vibration, wide operating temperature range and has extremely low coefficient of friction. The friction free characteristic promotes smoother action and increases the life of the gasket many times over.
- Technical Data - Service Capability
- Size : 3.0 to 25.0 (mm)(Square/Round)
- Temprature : Minimum : - 200 ºC , Maximum : + 260 ºC
- pH : 0 - 14
- Pressure resistance : vacuum up to 200 bar
